Product Introduction

Product

All Genoss products are manufactured in accordance with a systematic
and rigorous quality control system based on ISO standards.

Product Introduction Vascular Intervention
All
Stent
Catheter
Medical Device
Stent for Coronary Arteries
Osfit™
Description
- Staged balloon effect of single diameter balloon.
- Excellent stent positioning in ostial and branch lesions.
- Excellent treatment convenience and reduced treatment time.
Product Inquiry
How to Use

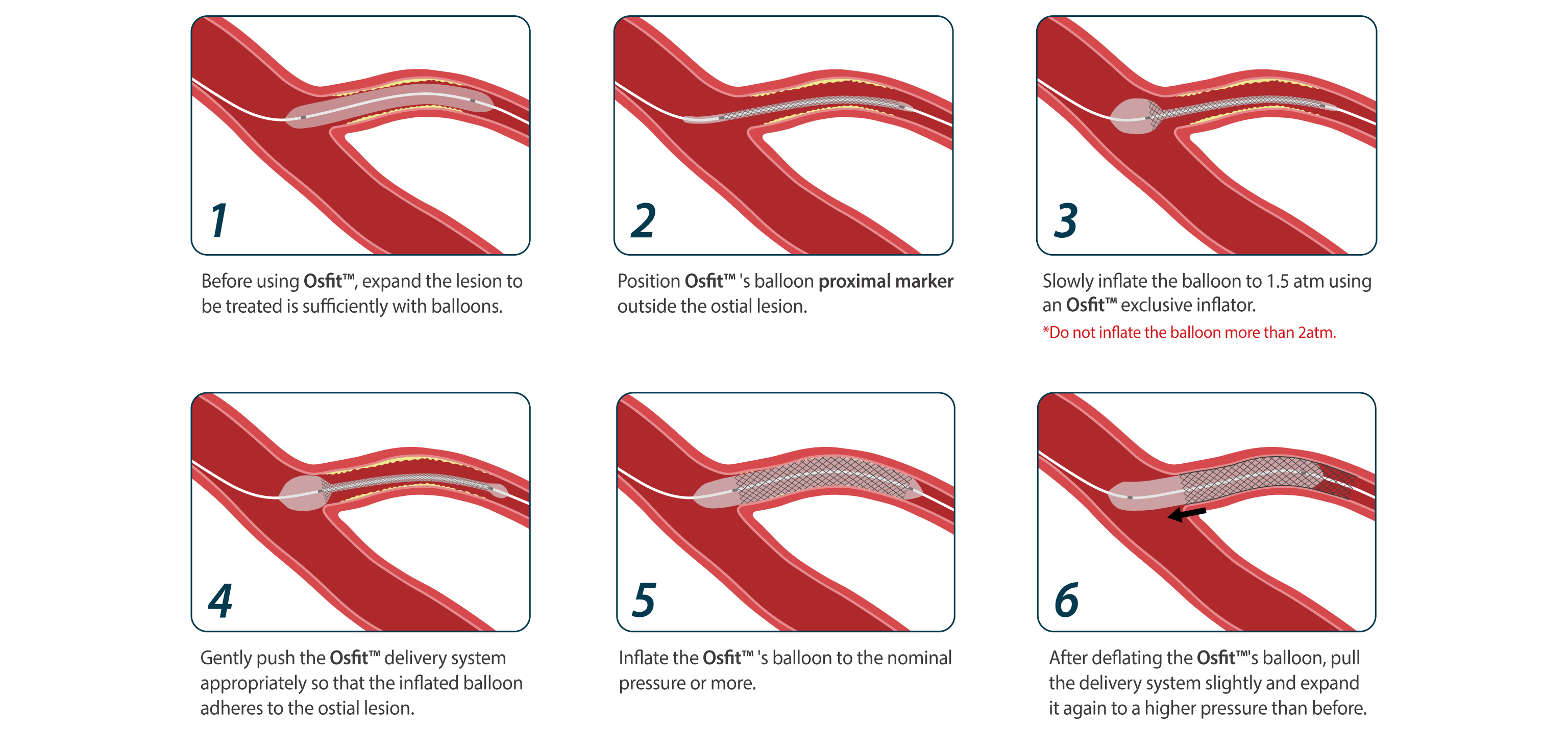

Osfit™ Coronary Stent System for Ostial and Bifurcation Lesion
OSFIT EASYFIT QUICKFIT JUSTFIT
Case 1. RCA Ostial Stenosis. In Stent Restenosis

Pre PCI Angiography

Post Balloon Angiography.
Genoss 2.5x20, 16ATM

OSFIT Positioning. 3.0X18

OSFIT Inflation with 1.5 ATM

OSFIT Inflation with 1.5 ATM.
Gentle Push

OSFIT Stent Implantation with 16 ATM

Post Stent Angiography

Post HP Angiography

Pre PCI Angiography

Post Balloon Angiography.
Genoss 2.5x20, 16ATM

OSFIT Positioning. 3.0X18

OSFIT Inflation with 1.5 ATM

OSFIT Inflation with 1.5 ATM.
Gentle Push

OSFIT Stent Implantation with 16 ATM

Post Stent Angiography

Post HP Angiography



Case 2. LCX Ostial Stenosis. Jailed by LM-LAD Stent

Pre PCI Angiography

Post Balloon Angiography.
Genoss 2.5x20 16 ATM, 16ATM

OSFIT Positioning. 3.0X18

OSFIT Inflation with 1.5 ATM

OSFIT Inflation with 1.5 ATM.
Gentle Push

OSFIT Stent Implantation
with 16 ATM

Post Stent Angiography

Kissing Balloon

Post Kissing Angiography 1

Post Kissing Angiography 2

Pre PCI Angiography

Post Balloon Angiography.
Genoss 2.5x20 16 ATM, 16ATM

OSFIT Positioning. 3.0X18

OSFIT Inflation with 1.5 ATM

OSFIT Inflation with 1.5 ATM.
Gentle Push

OSFIT Stent Implantation
with 16 ATM

Post Stent Angiography

Kissing Balloon

Post Kissing Angiography 1

Post Kissing Angiography 2



Case 3. Diagonal Ostial Stenosis. De Novo

Pre PCI Angiography

Pre PCI Angiography

Post Balloon Angiography.
Genoss 2.0x20 9ATM

OSFIT Inflation with 1.5 ATM.
2.5x18. Gentle Push

OSFIT Stent Implantation
with 12 ATM

Post Stent Angiography 1

Post Stent Angiography 2

Pre PCI Angiography

Pre PCI Angiography

Post Balloon Angiography.
Genoss 2.0x20 9ATM

OSFIT Inflation with 1.5 ATM.
2.5x18. Gentle Push

OSFIT Stent Implantation
with 12 ATM

Post Stent Angiography 1

Post Stent Angiography 2
Model Name
Stent length 8 13 15 18 20 23 28 33
Balloon length 13 18 20 23 25 28 33 38
Stent diameter
 2.25 GOS-08-225 GOS-13-225 GOS-15-225 GOS-18-225 GOS-20-225 GOS-23-225 GOS-28-225 GOS-33-225
2.50 GOS-08-250 GOS-13-250 GOS-15-250 GOS-18-250 GOS-20-250 GOS-23-250 GOS-28-250 GOS-33-250
2.75 GOS-08-275 GOS-13-275 GOS-15-275 GOS-18-275 GOS-20-275 GOS-23-275 GOS-28-275 GOS-33-275
3.00 GOS-08-300 GOS-13-300 GOS-15-300 GOS-18-300 GOS-20-300 GOS-23-300 GOS-28-300 GOS-33-300
3.25 GOS-08-325 GOS-13-325 GOS-15-325 GOS-18-325 GOS-20-325 GOS-23-325 GOS-28-325 GOS-33-325
3.50 GOS-08-350 GOS-13-350 GOS-15-350 GOS-18-350 GOS-20-350 GOS-23-350 GOS-28-350 GOS-33-350
3.75 GOS-08-375 GOS-13-375 GOS-15-375 GOS-18-375 GOS-20-375 GOS-23-375 GOS-28-375 GOS-33-375
4.00 GOS-08-400 GOS-13-400 GOS-15-400 GOS-18-400 GOS-20-400 GOS-23-400 GOS-28-400 GOS-33-400
